Pfannendachhalterung für 1 Modul 250Watt Rahmenhöhe 50mm

Mounting system / fastening system for PV modules

The system is also used in large systems.

Individual solutions available for all requirements, please inquire.

please inquire for larger quantities or other substructures.

The advantages at a glance

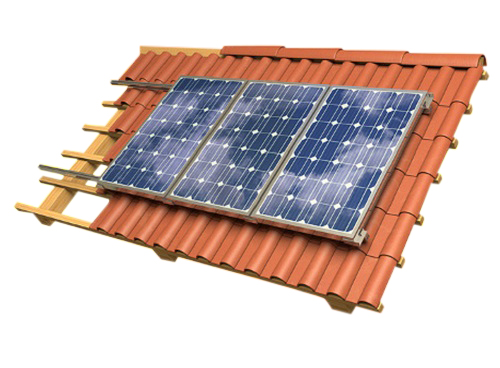

Mounting system for mounting solar modules on the roof.

Fixings available for all roof coverings.

The use of high-quality materials and a well thought-out system concept
guarantee quick and safe installation of your PV system.

The set consists of:

– 4 standard roof hooks including 8 flat head screws 8×80 made of stainless steel

– 4 T-head bolts M10x25 incl. 4 self-locking nuts M10

– 2 x 1.25m aluminum profile 40×40 Leich

– 4 end clamps 50mm

High-quality, corrosion-resistant materials made of stainless steel and aluminum ensure safe and durable installation.

For technical reasons, the aluminum profiles are a maximum of 2.0 m long and are supplied with profile connectors including screw connections.
